如何通过Arduino用旋钮控制烤箱界面

本教程将教会如何通过ProtoPie Connect连接Arduino连接ProtoPie实现旋钮控制烤箱界面。

ProtoPie

August 24, 2023

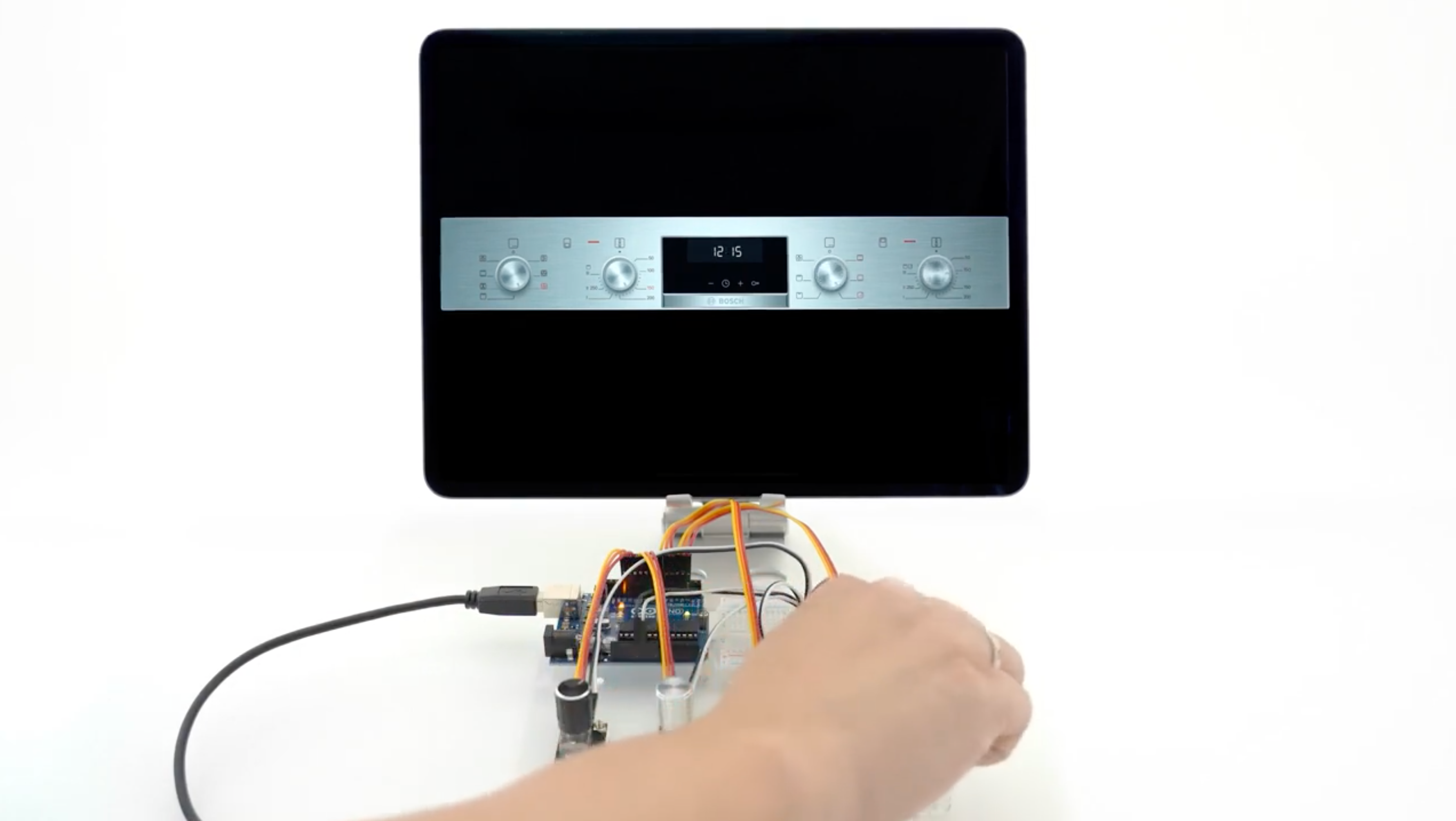

最终效果展示

物料准备

1. ProtoPie专业版或企业版账号

所有涉及软硬件交互的功能，都需要使用ProtoPie Connect。而目前（2023年4月19日）只有付费账号才能登录ProtoPie Connect。前往购买地址

2. 下载ProtoPie Connect和ProtoPie Player

在该页面注册会员并登录后，可以看到下载按钮。如果已有账号，同样点击注册会员，在注册页面选择“登录账号”后，可在该页面看到如下按钮

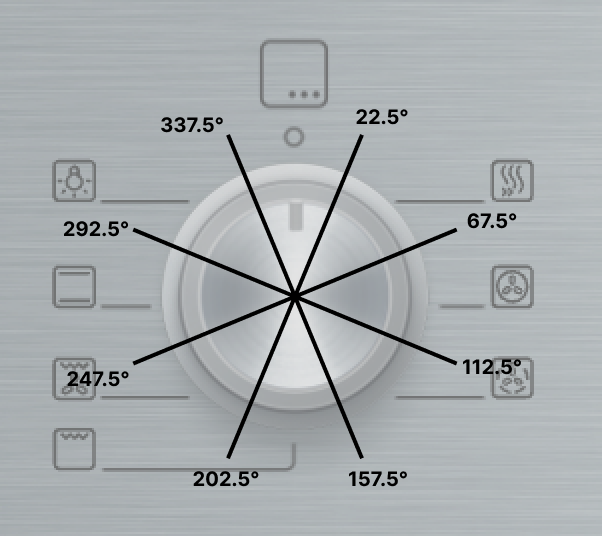

3. Pie源文件: https://cloud.protopie.io/p/cd83346acb1b4c5720680574

4. Arduino和旋钮

案例中使用的是Arduino Uno，你可以淘宝、京东等平台购买。以下是推荐的购买地址（无商业推广目的）

5. Arduino代码部分

Arduino本身需要运行代码，才能接收发硬件的信号。如果你还不清楚如何去安装Arduino并运行代码，请先参考该视频。

Arduino Sketch文件（代码部分）

/* Originally coded by Yvan / https://www.brainy-bits.com/arduino-rotary-encoder-ky-040/ */
/* Optimized for ProtoPie by Tony KIm / https://www.protopie.cn/ */

// Rotary Encoder Module connections
const int A_CLK=13;    // A CLOCK signal
const int A_DT=12;    // A DATA signal
const int A_SW=11;   // A Switch

const int B_CLK=10;    // B CLOCK signal
const int B_DT=9;    // B DATA signal
const int B_SW=8;   // B Switch

const int C_CLK=7;    // C CLOCK signal
const int C_DT=6;    // C DATA signal
const int C_SW=5;   // C Switch

const int D_CLK=4;    // D CLOCK signal
const int D_DT=3;    // D DATA signal
const int D_SW=2;   // D Switch

// Variables to debounce Rotary Encoder
long TimeOfLastDebounce = 0;
int DelayofDebounce = 0.01;

// Store previous Pins state
int Previous_A_CLK;
int Previous_A_DT;
int Previous_B_CLK;
int Previous_B_DT;
int Previous_C_CLK;
int Previous_C_DT;
int Previous_D_CLK;
int Previous_D_DT;


void setup() {
  // Put current pins state in variables
  Serial.begin(115200);
  Previous_A_CLK=digitalRead(A_CLK);
  Previous_B_CLK=digitalRead(B_CLK);
  Previous_C_CLK=digitalRead(C_CLK);
  Previous_D_CLK=digitalRead(D_CLK);

  Previous_A_DT=digitalRead(A_DT);
  Previous_B_DT=digitalRead(B_DT);
  Previous_C_DT=digitalRead(C_DT);
  Previous_D_DT=digitalRead(D_DT);

  // Set the Switch pin to use Arduino PULLUP resistors
  pinMode(A_SW, INPUT_PULLUP);
  pinMode(B_SW, INPUT_PULLUP);
  pinMode(C_SW, INPUT_PULLUP);
  pinMode(D_SW, INPUT_PULLUP);
}


void loop() {
  // If enough time has passed check the rotary encoder
  if ((millis() - TimeOfLastDebounce) > DelayofDebounce) {

    check_rotary();  // Rotary Encoder check routine below

    Previous_A_CLK=digitalRead(A_CLK);
    Previous_B_CLK=digitalRead(B_CLK);
    Previous_C_CLK=digitalRead(C_CLK);
    Previous_D_CLK=digitalRead(D_CLK);


    Previous_A_DT=digitalRead(A_DT);
    Previous_B_DT=digitalRead(B_DT);
    Previous_C_DT=digitalRead(C_DT);
    Previous_D_DT=digitalRead(D_DT);

    TimeOfLastDebounce=millis();  // Set variable to current millis() timer
  }

  // Check if Rotary Encoder switch was pressed

  if (digitalRead(A_SW) == LOW) {

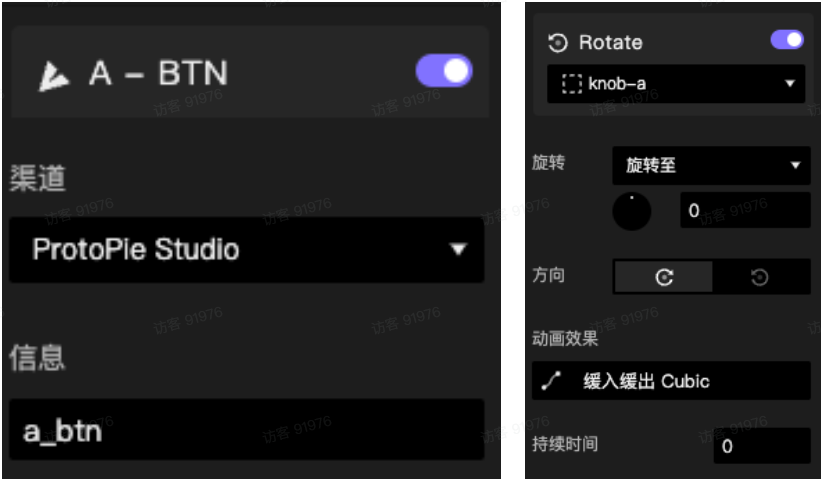

    Serial.println("a_btn"); // Send "a_btn" to ProtoPie
  }

   if (digitalRead(B_SW) == LOW) {
    Serial.println("b_btn"); // Send "b_btn" to ProtoPie
  }

   if (digitalRead(C_SW) == LOW) {
    Serial.println("c_btn"); // Send "c_btn" to ProtoPie
  }

   if (digitalRead(D_SW) == LOW) {
    Serial.println("d_btn"); // Send "d_btn" to ProtoPie
  }
}


// Check if Rotary Encoder was rotated
// Debounce codes - it eliminates bounce effects
void check_rotary() {

// Encoder A
if ((Previous_A_CLK == 0) && (Previous_A_DT == 1)) {
    if ((digitalRead(A_CLK) == 1) && (digitalRead(A_DT) == 0)) {

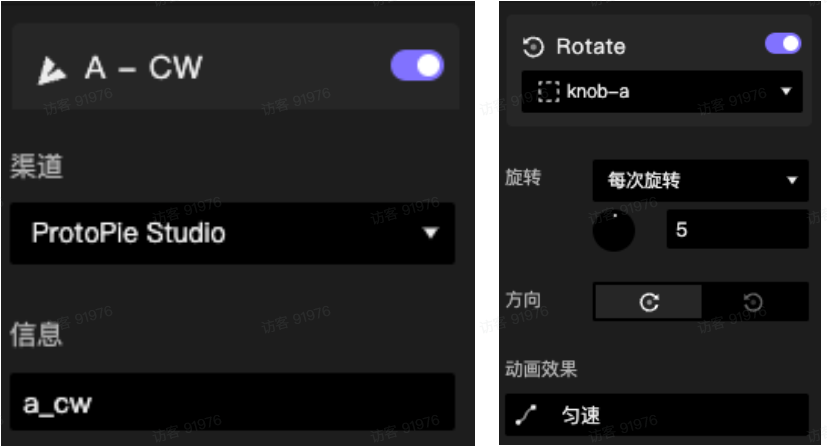

      Serial.println("a_cw"); // Send "a_cw" to ProtoPie
    }
    if ((digitalRead(A_CLK) == 1) && (digitalRead(A_DT) == 1)) {

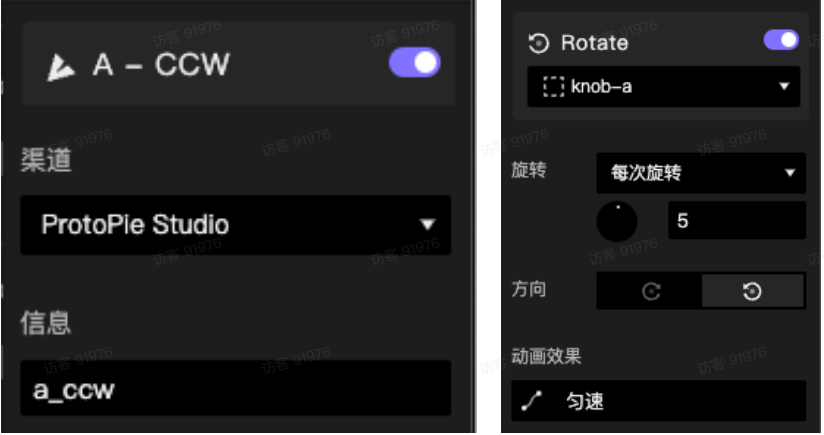

      Serial.println("a_ccw"); // Send "a_ccw" to ProtoPie
    }
  }

if ((Previous_A_CLK == 1) && (Previous_A_DT == 0)) {
    if ((digitalRead(A_CLK) == 0) && (digitalRead(A_DT) == 1)) {
      Serial.println("a_cw"); // Send "a_cw" to ProtoPie
    }
    if ((digitalRead(A_CLK) == 0) && (digitalRead(A_DT) == 0)) {
      Serial.println("a_ccw"); // Send "a_ccw" to ProtoPie
    }
  }

if ((Previous_A_CLK == 1) && (Previous_A_DT == 1)) {
    if ((digitalRead(A_CLK) == 0) && (digitalRead(A_DT) == 1)) {
      Serial.println("a_cw"); // Send "a_cw" to ProtoPie
    }
    if ((digitalRead(A_CLK) == 0) && (digitalRead(A_DT) == 0)) {
      Serial.println("a_ccw"); // Send "a_ccw" to ProtoPie
    }
  }

if ((Previous_A_CLK == 0) && (Previous_A_DT == 0)) {
    if ((digitalRead(A_CLK) == 1) && (digitalRead(A_DT) == 0)) {
      Serial.println("a_cw"); // Send "a_cw" to ProtoPie
    }
    if ((digitalRead(A_CLK) == 1) && (digitalRead(A_DT) == 1)) {
      Serial.println("a_ccw"); // Send "a_ccw" to ProtoPie
    }
  }


//Encorder B
if ((Previous_B_CLK == 0) && (Previous_B_DT == 1)) {
    if ((digitalRead(B_CLK) == 1) && (digitalRead(B_DT) == 0)) {
      Serial.println("b_cw"); // Send "b_cw" to ProtoPie
    }
    if ((digitalRead(B_CLK) == 1) && (digitalRead(B_DT) == 1)) {
      Serial.println("b_ccw"); // Send "b_ccw" to ProtoPie
    }
  }

if ((Previous_B_CLK == 1) && (Previous_B_DT == 0)) {
    if ((digitalRead(B_CLK) == 0) && (digitalRead(B_DT) == 1)) {
      Serial.println("b_cw"); // Send "b_cw" to ProtoPie
    }
    if ((digitalRead(B_CLK) == 0) && (digitalRead(B_DT) == 0)) {
      Serial.println("b_ccw"); // Send "b_ccw" to ProtoPie
    }
  }

if ((Previous_B_CLK == 1) && (Previous_B_DT == 1)) {
    if ((digitalRead(B_CLK) == 0) && (digitalRead(B_DT) == 1)) {
      Serial.println("b_cw"); // Send "b_cw" to ProtoPie
    }
    if ((digitalRead(B_CLK) == 0) && (digitalRead(B_DT) == 0)) {
      Serial.println("b_ccw"); // Send "b_ccw" to ProtoPie
    }
  }

if ((Previous_B_CLK == 0) && (Previous_B_DT == 0)) {
    if ((digitalRead(B_CLK) == 1) && (digitalRead(B_DT) == 0)) {
      Serial.println("b_cw"); // Send "b_cw" to ProtoPie
    }
    if ((digitalRead(B_CLK) == 1) && (digitalRead(B_DT) == 1)) {
      Serial.println("b_ccw"); // Send "b_ccw" to ProtoPie
    }
  }



 //Encorder C
if ((Previous_C_CLK == 0) && (Previous_C_DT == 1)) {
    if ((digitalRead(C_CLK) == 1) && (digitalRead(C_DT) == 0)) {
      Serial.println("c_cw"); // Send "c_cw" to ProtoPie
    }
    if ((digitalRead(C_CLK) == 1) && (digitalRead(C_DT) == 1)) {
      Serial.println("c_ccw"); // Send "c_ccw" to ProtoPie
    }
  }

if ((Previous_C_CLK == 1) && (Previous_C_DT == 0)) {
    if ((digitalRead(C_CLK) == 0) && (digitalRead(C_DT) == 1)) {
      Serial.println("c_cw"); // Send "c_cw" to ProtoPie
    }
    if ((digitalRead(C_CLK) == 0) && (digitalRead(C_DT) == 0)) {
      Serial.println("c_ccw"); // Send "c_ccw" to ProtoPie
    }
  }

if ((Previous_C_CLK == 1) && (Previous_C_DT == 1)) {
    if ((digitalRead(C_CLK) == 0) && (digitalRead(C_DT) == 1)) {
      Serial.println("c_cw"); // Send "c_cw" to ProtoPie
    }
    if ((digitalRead(C_CLK) == 0) && (digitalRead(C_DT) == 0)) {
      Serial.println("c_ccw"); // Send "c_ccw" to ProtoPie
    }
  }

if ((Previous_C_CLK == 0) && (Previous_C_DT == 0)) {
    if ((digitalRead(C_CLK) == 1) && (digitalRead(C_DT) == 0)) {
      Serial.println("c_cw"); // Send "c_cw" to ProtoPie
    }
    if ((digitalRead(C_CLK) == 1) && (digitalRead(C_DT) == 1)) {
      Serial.println("c_ccw"); // Send "c_ccw" to ProtoPie
    }
  }


 //Encorder D
if ((Previous_D_CLK == 0) && (Previous_D_DT == 1)) {
    if ((digitalRead(D_CLK) == 1) && (digitalRead(D_DT) == 0)) {
      Serial.println("d_cw"); // Send "d_cw" to ProtoPie
    }
    if ((digitalRead(D_CLK) == 1) && (digitalRead(D_DT) == 1)) {
      Serial.println("d_ccw"); // Send "d_ccw" to ProtoPie
    }
  }

if ((Previous_D_CLK == 1) && (Previous_D_DT == 0)) {
    if ((digitalRead(D_CLK) == 0) && (digitalRead(D_DT) == 1)) {
      Serial.println("d_cw"); // Send "d_cw" to ProtoPie
    }
    if ((digitalRead(D_CLK) == 0) && (digitalRead(D_DT) == 0)) {
      Serial.println("d_ccw"); // Send "d_ccw" to ProtoPie
    }
  }

if ((Previous_D_CLK == 1) && (Previous_D_DT == 1)) {
    if ((digitalRead(D_CLK) == 0) && (digitalRead(D_DT) == 1)) {
      Serial.println("d_cw"); // Send "d_cw" to ProtoPie
    }
    if ((digitalRead(D_CLK) == 0) && (digitalRead(D_DT) == 0)) {
      Serial.println("d_ccw"); // Send "d_ccw" to ProtoPie
    }
  }

if ((Previous_D_CLK == 0) && (Previous_D_DT == 0)) {
    if ((digitalRead(D_CLK) == 1) && (digitalRead(D_DT) == 0)) {
      Serial.println("d_cw"); // Send "d_cw" to ProtoPie
    }
    if ((digitalRead(D_CLK) == 1) && (digitalRead(D_DT) == 1)) {
      Serial.println("d_ccw"); // Send "d_ccw" to ProtoPie
    }
  }
}

连接与运行

1. 连接面包版

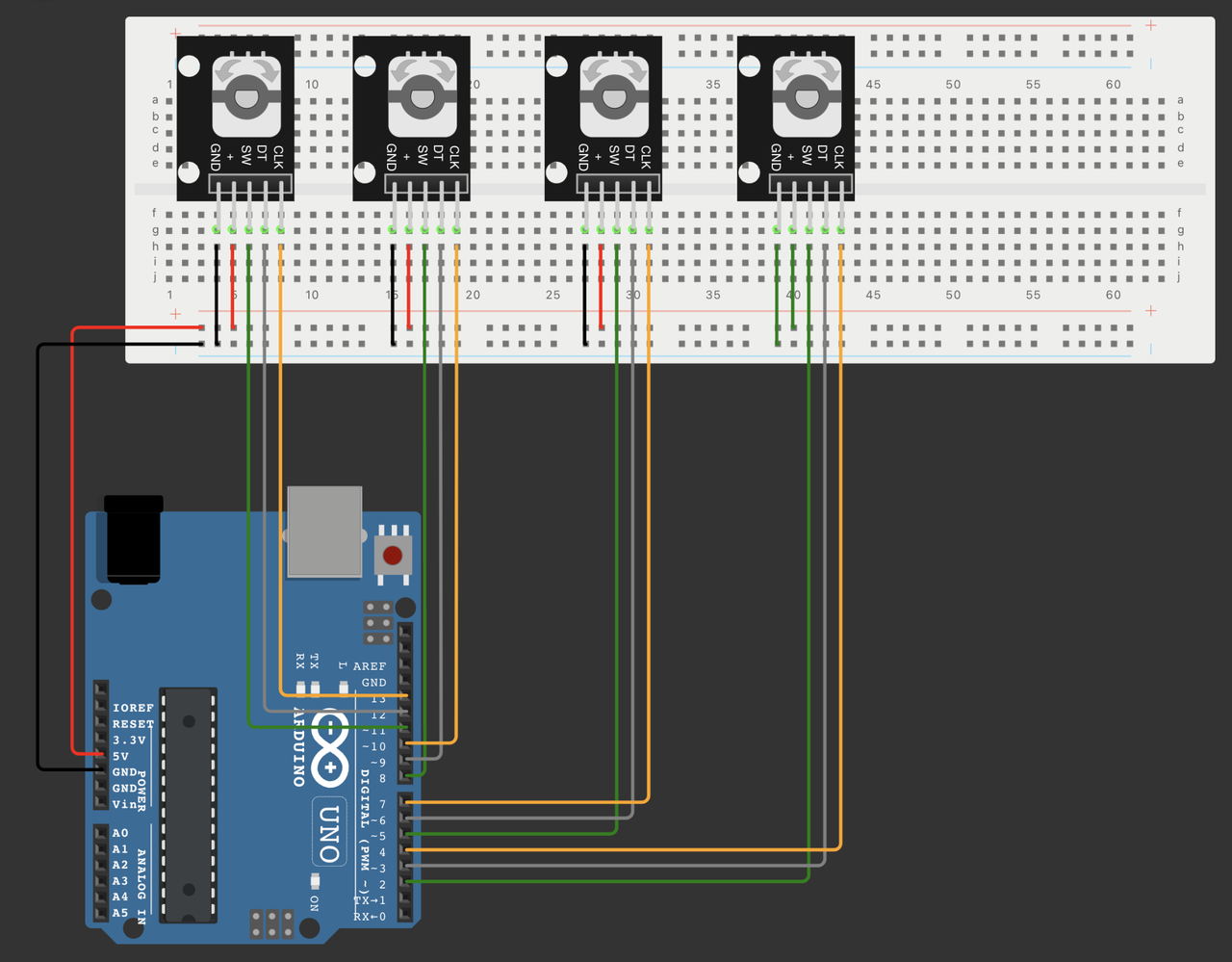

按照下面的示意图将4个旋钮和Arduino Uno相连

2. Arduino同ProtoPie Connect 的连接

通过USB接口将Arduino和装有ProtoPie Connect的电脑相连

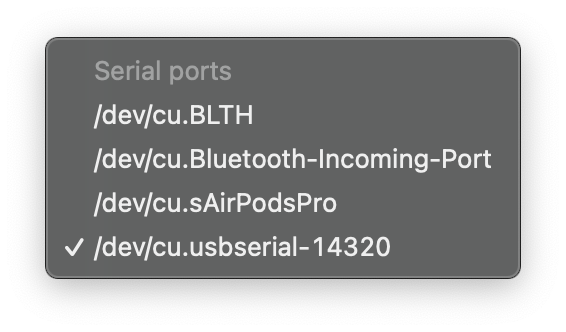

运行Arduino代码，请注意，此时的接口应该是你的usb接口

运行代码
打开serial monitor检测信号是否正常进入，确认后须关闭serial monitor （serial monitor窗口和ProtoPie connect不能同时开启）

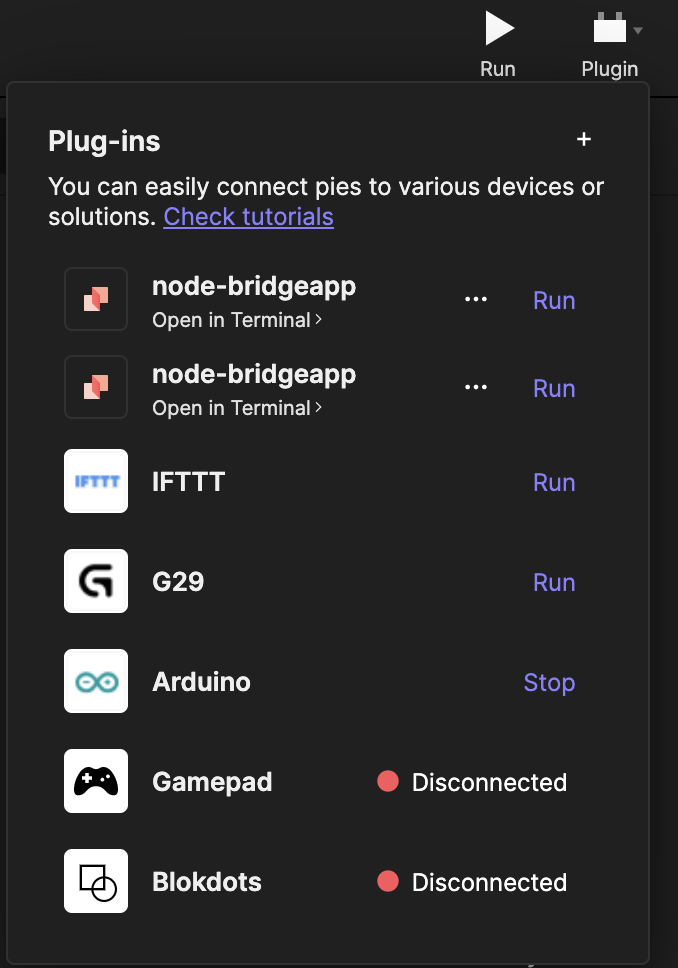

打开ProtoPie Connect，选择右上角的Plugin，在点击Run之前先点击Arduino

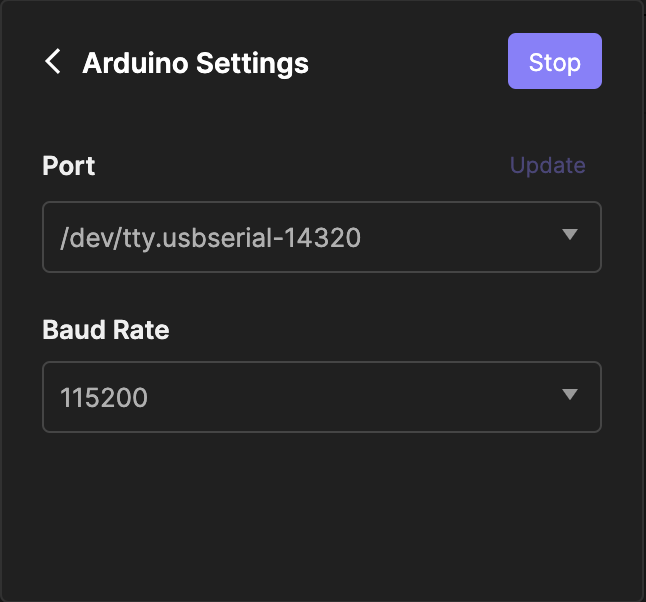

选择在b这步相同的接口，并将Baud Rate设置为115200.

现在当你调节旋钮的时候，应该可以看到数据进入到Connect了。

3. 通过ProtoPie Connect运行Pie文件

点击ProtoPie Connect左上角的加号，选择本地文件，选择要和Arduino连接的Pie文件。

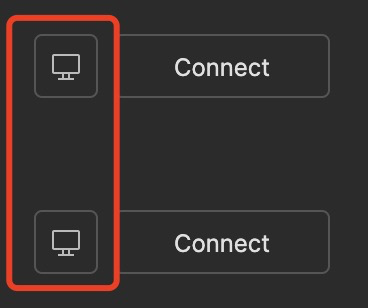

导入后，点击预览图标，原型就可在网页端打开

此时物理按钮就可以操控屏幕上的视觉效果了

4. 在装有Player的平板上运行交互

你可以用数据线现将平板/手机和电脑相连，这样原型可以在离线环境下从Connect同步到Player。如果希望通过Wifi连接，请一定确保电脑和移动端连在同一个网络环境下。（手机热点可以帮你确保连在同一个网络下）

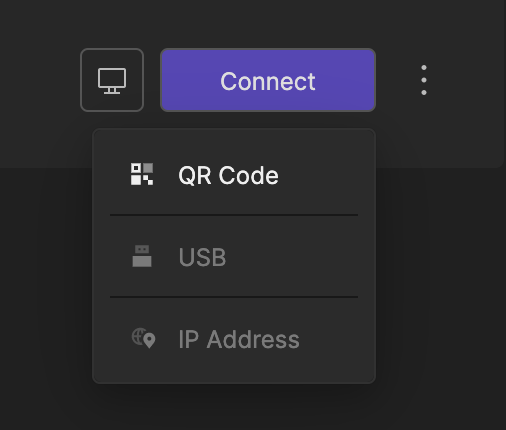

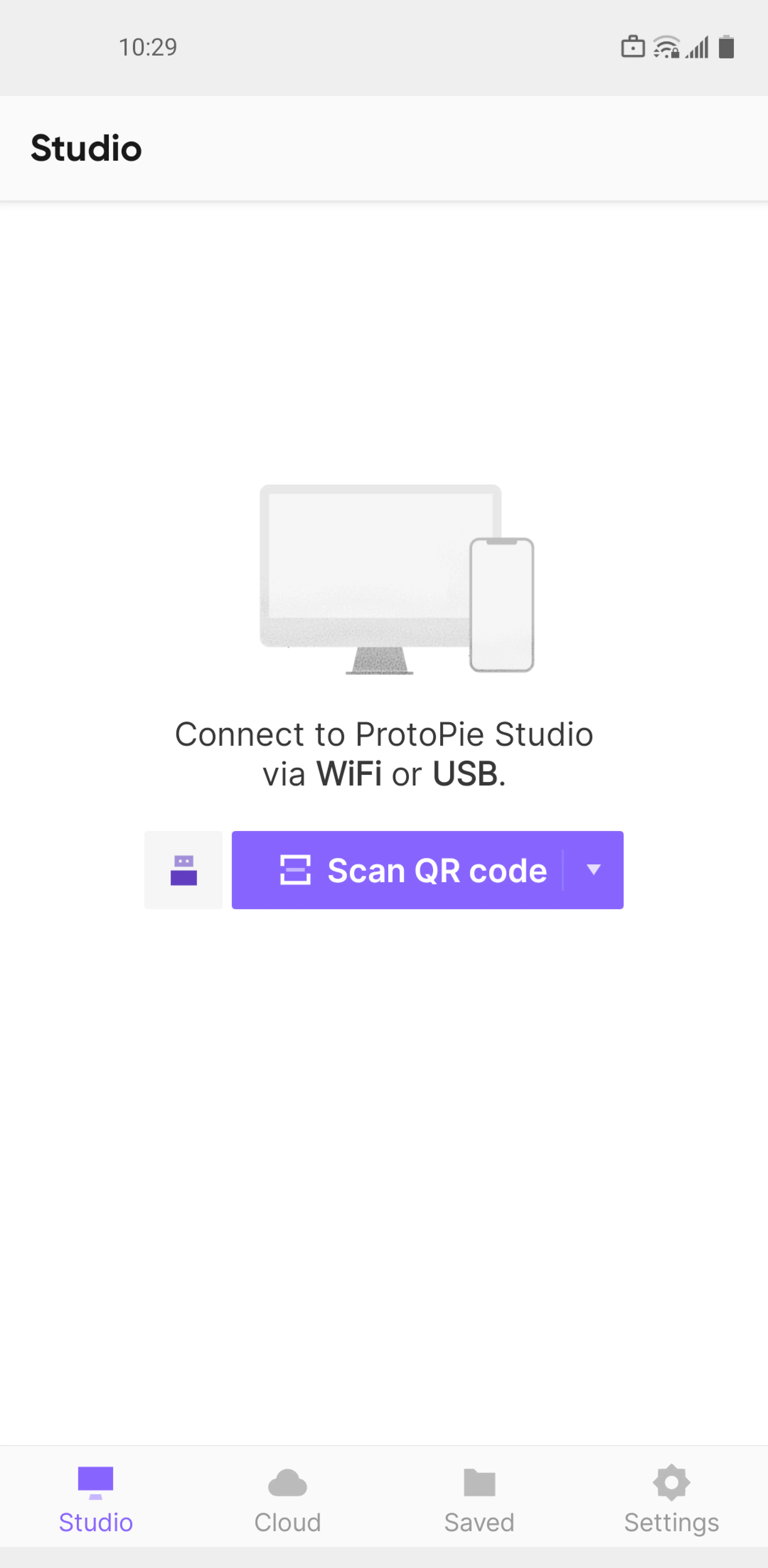

打开ProtoPie Player，点击USB图标或扫码键。与此同时点击ProtoPie Connect上的Connect键（预览图标旁边的），选择相应的连接方式。如果在连接中遇到问题可参考指导手册。现在你就可以看到和demo视频中一样的效果啦。
